Adding custom lines to the Forge Viewer scene

September 12, 2017

    There are several reasons why you would want to add custom lines to a Viewer scene: representing wireframe geometry, visualizing bounding boxes or any other of visual feedback your app may have to provide to the user...

    There are basically three ways to achieve that, let's take a look what those are, but let's first create a single line with the snippet below:

const geometry = new THREE.Geometry ()

geometry.vertices.push (new THREE.Vector3 ( 0,  0,  0))
geometry.vertices.push (new THREE.Vector3 (10, 10, 10))

var linesMaterial = new THREE.LineBasicMaterial ({
  color: new THREE.Color (0xFF0000),
  transparent: true,
  depthWrite: false,
  depthTest: true,
  linewidth: 10,
  opacity: 1.0
})

var lines = new THREE.Line (geometry,
  linesMaterial,
  THREE.LinePieces)

     I - The first method is to add the lines directly to the scene:

//1 - First method
viewer.impl.scene.add (lines)
viewer.impl.invalidate (true)

    However this approach doesn't seem to reliably work in any browser: it works in Firefox but not in Chrome on my side... so let's move to the next one.

    II - Second method is to add the lines to the sceneAfter

//2 - Second method
viewer.impl.sceneAfter.add (lines)
viewer.impl.invalidate (true)

    Works better across all browsers but as soon as you toggle visibility of a component ("Isolate" or "Hide" from the context menu or programmatically with viewer.hide, viewer.isolate, ... ) all lines added to the scene this way will also disappear. I guess this is a consequence of the shaders and rendering settings used by the viewer.

   III - Third method is to create an overlay scene and add the lines to it:

//3 - Third method
viewer.impl.createOverlayScene (
  'myOverlay', linesMaterial)

viewer.impl.addOverlay (
  'myOverlay', lines)

viewer.impl.invalidate (true)

    This approach works reliably across all browsers and the custom lines will not be affected by visibility settings of the components in the viewer. So based on your needs, you'll have you pick the one that is best suited...

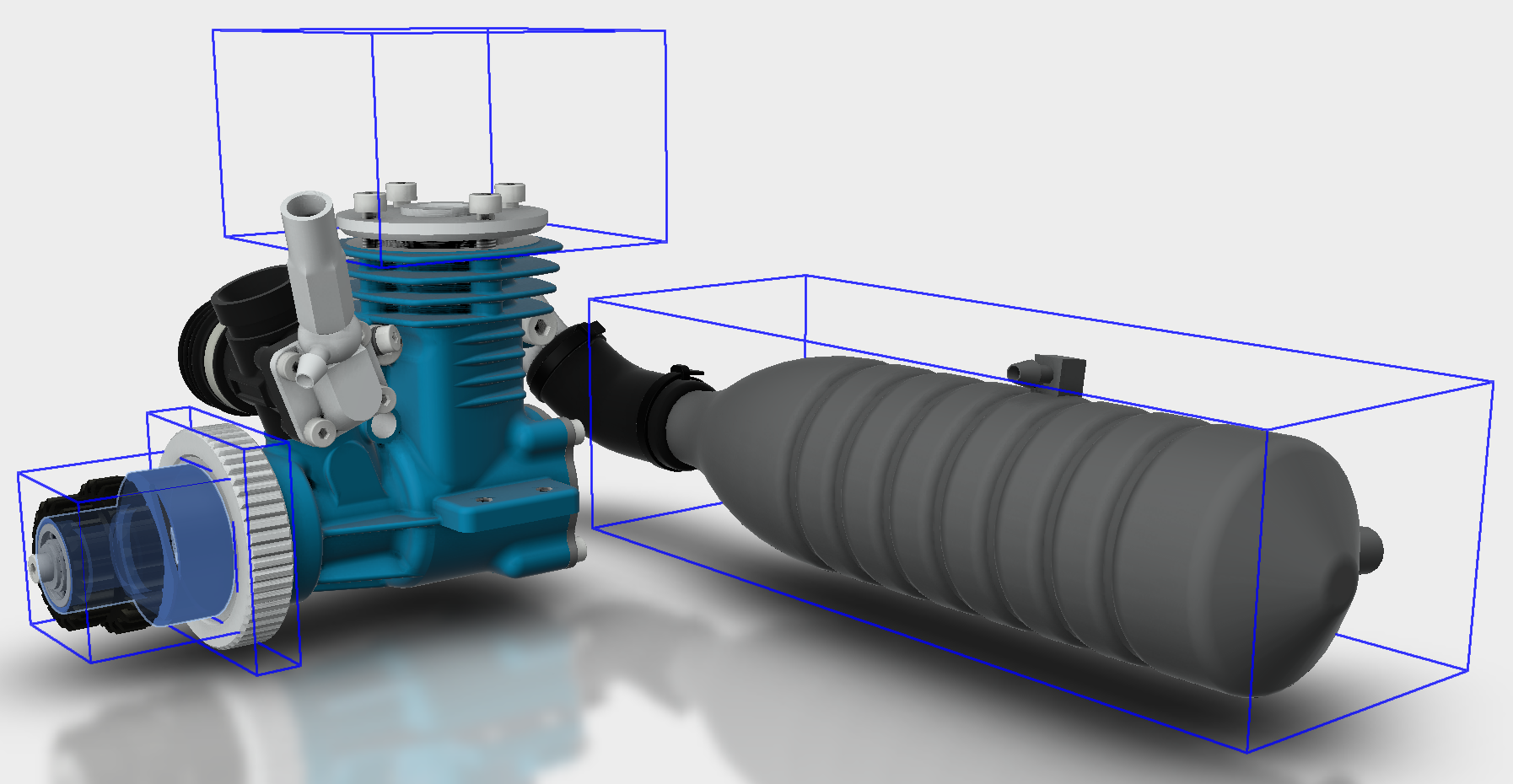

    As an example I created the following Viewing.Extension.BoundingBox which lets you pick a component and visualize its bounding box represented by custom lines in an overlay scene.

    The live demo is available here and the complete code below:
